MGVCL EXAM PAPER (30-07-2021 SHIFT 1) QUIZ

Calculate the capacitance per meter of a 50 Ω load cable that has an inductance of 50 nH/m.

20 pF

40 pF

30 pF

10 pF

TRUE ANSWER : ?
YOUR ANSWER : ?

Murray loop test is performed on a faulty cable 300 m long. At balance, the resistance connected to the faulty core was set at 15 Ω and the resistance of the resistor connected to the sound core was 45 Ω. Calculate the distance of the fault point from the test end.

150 m

225 m

450 m

75 m

TRUE ANSWER : ?
YOUR ANSWER : ?

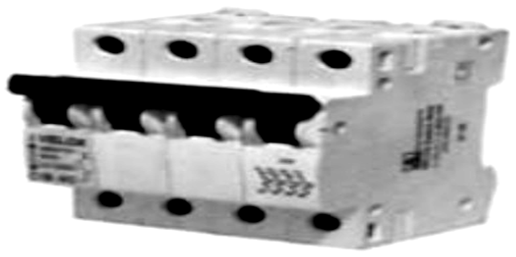

The miniature circuit breaker (MCB) shown in figure is

five pole MCB

two pole MCB

three pole MCB

four pole MCB

TRUE ANSWER : ?
YOUR ANSWER : ?

માણસ: ઘર :: પશુ :

પાતાળ

ગુફા

આકાશ

અંતરિક્ષ

TRUE ANSWER : ?
YOUR ANSWER : ?

Which of the following are the advantages of Aerial Bunched Cables (ABC)?

Elimination of theft of energy

All of these

Higher safety and reliability

Reduced height of supports

TRUE ANSWER : ?
YOUR ANSWER : ?

A fully controlled natural commutated 3-phase bridge rectifier is operating with a firing angle α = 30°, The peak to peak voltage ripple expressed as a ratio of the peak output dc voltage at the output of the converter bridge is

1-(√3/2)

0.5

√3-1

√3 -1

TRUE ANSWER : ?
YOUR ANSWER : ?

1.મંગલ + આચરણ - મંગલાચરણ 2. હરિ+ઇન્દ્ર - હરીન્દ્ર 3.નર+ઈશ - નરેશ 4. પ્રતિ+અક્ષ - પ્રતિક્ષ ઉપરોક્ત વર્ણવેલમાંથી કઈ સંધિ સાચી છે.

1,3

2,3,

1,4

2,1

TRUE ANSWER : ?
YOUR ANSWER : ?

In underground cables, the electrostatic stress is _ at contactor surface and _ at the sheath.

zero, zero

minimum, maximum

zero, minimum

minimum, maximum

TRUE ANSWER : ?
YOUR ANSWER : ?

Stability of power system can be improved by 1. Reducing voltage of transmission 2. Using parallel transmission lines 3. Using series compensators Which of the above statements are correct?

1 and 2 only

1 and 3 only

All 1, 2 and 3

2 and 3 only

TRUE ANSWER : ?
YOUR ANSWER : ?

Rearrange the following to form a meaningful sentence and find the most logical order from the given options. P: 60 countries using dance as a tool for Q: building social cohesion and resolving R: conflict throughout the world S: battery Dance has travelled far and wide across

SPRQ

SPQR

PQRS

PQSR

TRUE ANSWER : ?
YOUR ANSWER : ?
