The main function of an interposing CT is to balance the currents supplied to the relay where there would be an imbalance due to the ratios of the main CTs. Interposing CTs are equipment with a ratio that can be selected by the user to achieve the balance required. An interposing CT is installed between the secondary winding of the main CT and relay.

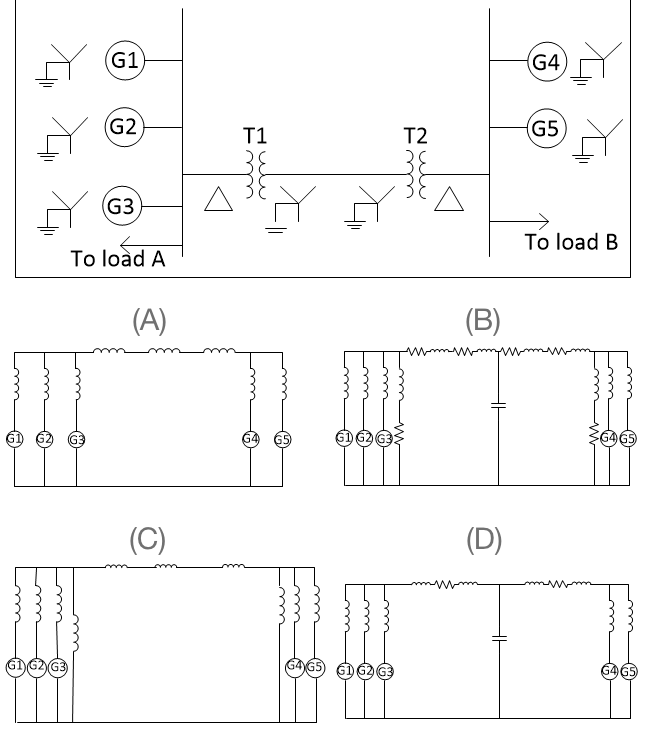

Simple logic of reactance diagram is that simplified equivalent circuit of power system in which the various components of power system are represented by their reactances. The reactance diagram can be obtained from impedance diagram if all the resistive components are neglected.
MCCB stands for Moulded Case Circuit Breaker. MCB stands for Miniature Circuit Breaker. ELCB stands for Earth Leakage Circuit Breaker RCCB stands for Residual Current Circuit Breaker.
For lagging power factor = (IR*cosφ + IXsinφ)/V_r For leading power factor = (IR*cosφ - IXsinφ)/V_r Zero voltage regulation occurs on leading power factor only.
